Version: 0.16 (Latest)

PostgreSQL

The pg_fasttransfer extension allows you to run the FastTransfer tool directly from an SQL function, enabling fast data transfer between databases directly from PostgreSQL.

Extension Overview

Repository: arpe-io/pg_fasttransfer
License: MIT
Latest version: v0.16.0
Platforms: Linux (Debian/Ubuntu) and Windows

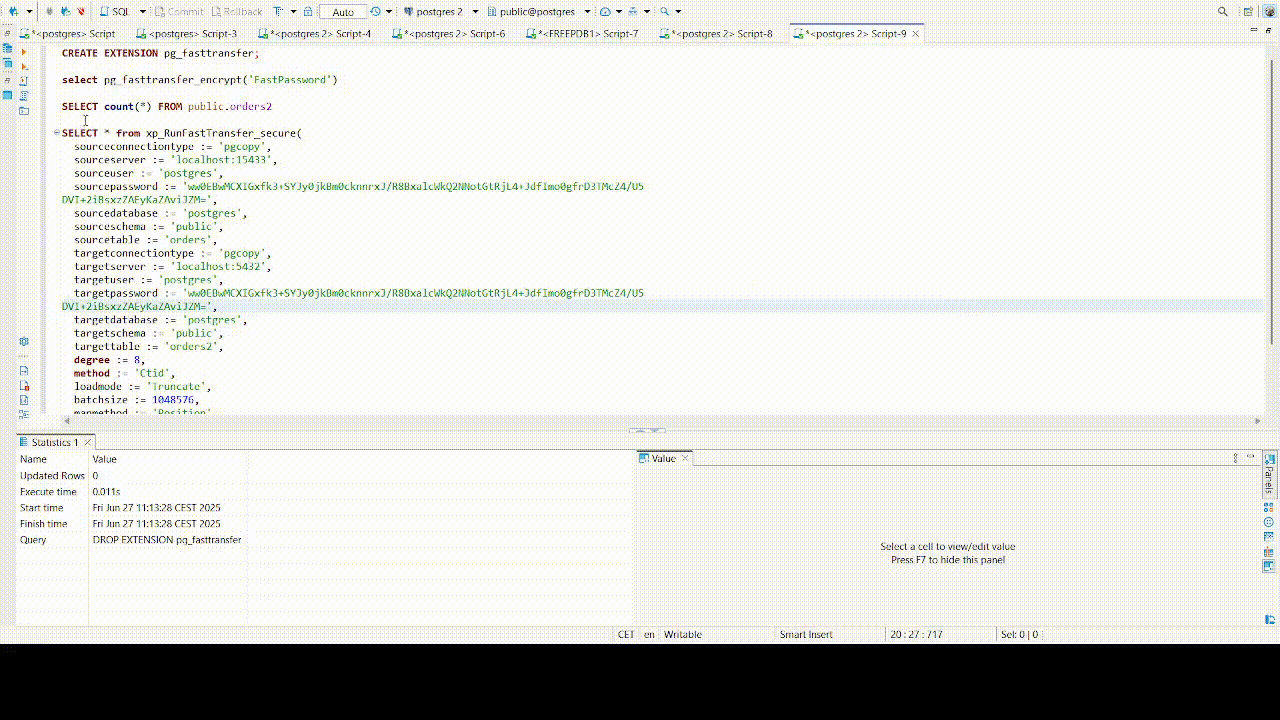

pg_fasttransfer Demo

Features

Native PostgreSQL Integration: Execute FastTransfer commands directly from SQL
Secure Password Management: Built-in encryption for sensitive credentials
Detailed Result Return: Get transfer statistics and performance metrics as SQL results
Cross-Platform: Available for both Linux and Windows environments
Flexible Configuration: Support for all FastTransfer parameters

Prerequisites

PostgreSQL 15, 16, 17, or 18
Sudo/Administrator privileges to install the extension
Valid FastTransfer license (request a trial license)
FastTransfer binaries installed on the system

Important

The PostgreSQL server process usually runs under the postgres user account. You must ensure that this user has the appropriate permissions to execute the FastTransfer binary and read the license file.

Compatibility

Windows
Linux

PostgreSQL Version	Supported
PostgreSQL 18
PostgreSQL 17
PostgreSQL 16
PostgreSQL 15

info

Other distributions or PostgreSQL versions may work but have not been officially tested.

Installation

Download the Extension

Download the appropriate release for your PostgreSQL version and operating system from the pg_fasttransfer releases page.

Linux
Windows

Automated Installation

The easiest way to install the extension on Linux is by using the install-linux.sh script included in the archive.

Extract the contents of the archive into a folder. This folder should contain:
- pg_fasttransfer.so
- pg_fasttransfer.control
- pg_fasttransfer--1.0.sql
- install-linux.sh
Make the script executable:

chmod +x install-linux.sh

Run the script with administrator privileges:

sudo ./install-linux.sh

The script will automatically detect your PostgreSQL installation and copy the files to the correct locations.

Manual Installation

If the automated script fails or you prefer to install the files manually:

Stop your PostgreSQL service:

sudo systemctl stop postgresql

Locate your PostgreSQL installation directory, typically: /usr/lib/postgresql/<version>
Copy the files into the appropriate directories:

sudo cp pg_fasttransfer.so /usr/lib/postgresql/<version>/lib/
sudo cp pg_fasttransfer.control pg_fasttransfer--1.0.sql /usr/share/postgresql/<version>/extension/

Restart your PostgreSQL service:

sudo systemctl start postgresql

Permissions Setup

Ensure the postgres user has proper permissions:

# Grant execute permission on the FastTransfer binary
sudo chmod +x /path/to/FastTransfer
sudo chown postgres:postgres /path/to/FastTransfer
sudo chmod 750 /path/to/FastTransfer

# Grant read permission on the license file
sudo chown postgres:postgres /path/to/license.lic
sudo chmod 640 /path/to/license.lic

Automated Installation

Extract the contents of the ZIP file into a folder. This folder should contain:
- pg_fasttransfer.dll
- pg_fasttransfer.control
- pg_fasttransfer--1.0.sql
- install-win.bat
Right-click on the install-win.bat file and select "Run as administrator"
The script will automatically detect your PostgreSQL installation and copy the files to the correct locations

Manual Installation

If the automated script fails or you prefer to install the files manually:

Stop your PostgreSQL service
Locate your PostgreSQL installation folder, typically:

C:\Program Files\PostgreSQL\<version>

Copy the pg_fasttransfer.dll file into the lib folder
Copy the pg_fasttransfer.control and pg_fasttransfer--1.0.sql files into the share\extension folder
Restart your PostgreSQL service

Permissions Setup

Make sure that the PostgreSQL service account (by default NT AUTHORITY\NetworkService or postgres) has:

Execute permission on the FastTransfer.exe binary
Read permission on the .lic file

SQL Setup

After the files are in place, you need to set up the extension in your database.

Drop existing extension (if any)

DROP EXTENSION IF EXISTS pg_fasttransfer CASCADE;

Create the extension

CREATE EXTENSION pg_fasttransfer CASCADE;

Functions

pg_fasttransfer_encrypt

This function encrypts a given text string using pgp_sym_encrypt and encodes the result in base64. It is useful for storing sensitive information, such as passwords, in a secure manner within your SQL scripts.

The xp_RunFastTransfer_secure function will automatically decrypt any values passed to its --sourcepassword and --targetpassword arguments.

Syntax:

pg_fasttransfer_encrypt(text_to_encrypt text) RETURNS text

Example:

SELECT pg_fasttransfer_encrypt('MySecurePassword');
-- Returns: A base64-encoded encrypted string, e.g., "PgP...base64encodedstring=="

xp_RunFastTransfer_secure

This is the main function to execute the FastTransfer tool. It takes various parameters to configure the data transfer operation.

Password arguments (sourcepassword, targetpassword) will be automatically decrypted.

Syntax:

xp_RunFastTransfer_secure(
    sourceconnectiontype text DEFAULT NULL,
    sourceconnectstring text DEFAULT NULL,
    sourcedsn text DEFAULT NULL,
    sourceprovider text DEFAULT NULL,
    sourceserver text DEFAULT NULL,
    sourceuser text DEFAULT NULL,
    sourcepassword text DEFAULT NULL,
    sourcetrusted boolean DEFAULT FALSE,
    sourcedatabase text DEFAULT NULL,
    sourceschema text DEFAULT NULL,
    sourcetable text DEFAULT NULL,
    query text DEFAULT NULL,
    fileinput text DEFAULT NULL,
    targetconnectiontype text DEFAULT NULL,
    targetconnectstring text DEFAULT NULL,
    targetserver text DEFAULT NULL,
    targetuser text DEFAULT NULL,
    targetpassword text DEFAULT NULL,
    targettrusted boolean DEFAULT FALSE,
    targetdatabase text DEFAULT NULL,
    targetschema text DEFAULT NULL,
    targettable text DEFAULT NULL,
    degree integer DEFAULT NULL,
    method text DEFAULT NULL,
    distributekeycolumn text DEFAULT NULL,
    datadrivenquery text DEFAULT NULL,
    loadmode text DEFAULT NULL,
    batchsize integer DEFAULT NULL,
    useworktables boolean DEFAULT FALSE,
    runid text DEFAULT NULL,
    settingsfile text DEFAULT NULL,
    mapmethod text DEFAULT NULL,
    license text DEFAULT NULL,
    loglevel text DEFAULT NULL,
    nobanner boolean DEFAULT NULL,
    fasttransfer_path text DEFAULT NULL,
    debug boolean DEFAULT FALSE
) RETURNS TABLE (
    exit_code integer,
    output text,
    error_message text,
    total_rows bigint,
    total_columns integer,
    transfer_time_ms bigint,
    total_time_ms bigint
)

Usage Examples

Linux Example - PostgreSQL to SQL Server

Transfer data from PostgreSQL to SQL Server using the extension:

SELECT * FROM xp_RunFastTransfer_secure(
    targetconnectiontype := 'msbulk',
    sourceconnectiontype := 'pgsql',
    sourceserver := 'localhost:5432',
    sourceuser := 'postgres',
    sourcepassword := pg_fasttransfer_encrypt('MyActualPassword'),
    sourcedatabase := 'tpch',
    sourceschema := 'tpch_1',
    sourcetable := 'orders',
    targetserver := 'localhost,1433',
    targetuser := 'migadmin',
    targetpassword := pg_fasttransfer_encrypt('AnotherSecurePassword'),
    targetdatabase := 'target_db',
    targetschema := 'tpch_1',
    targettable := 'orders',
    loadmode := 'Truncate',
    license := '/tmp/FastTransfer_linux-x64_v0.15.0/FastTransfer.lic',
    loglevel := 'information',
    nobanner := false,
    fasttransfer_path := '/tmp/FastTransfer_linux-x64_v0.15.0',
    debug := true
);

Windows Example - SQL Server to PostgreSQL

Transfer data from SQL Server to PostgreSQL:

SELECT * FROM xp_RunFastTransfer_secure(
    sourceconnectiontype := 'mssql',
    sourceserver := 'localhost',
    sourcepassword := pg_fasttransfer_encrypt('MyWindowsPassword'),
    sourceuser := 'FastLogin',
    sourcedatabase := 'tpch10',
    sourceschema := 'dbo',
    sourcetable := 'orders',
    targetconnectiontype := 'pgcopy',
    targetserver := 'localhost:15433',
    targetuser := 'postgres',
    targetpassword := pg_fasttransfer_encrypt('MyPostgresPassword'),
    targetdatabase := 'postgres',
    targetschema := 'public',
    targettable := 'orders',
    method := 'Ntile',
    degree := 12,
    distributekeycolumn := 'o_orderkey',
    loadmode := 'Truncate',
    batchsize := 1048576,
    mapmethod := 'Position',
    loglevel := 'information',
    nobanner := true,
    fasttransfer_path := 'D:\sources\FastTransfer',
    debug := true
);

Function Return Structure

The function returns a table with the following columns:

Column	Type	Description
`exit_code`	integer	The exit code of the FastTransfer process
`output`	text	The full log output from FastTransfer (if debug is TRUE)
`error_message`	text	Only the lines containing ERROR from the output
`total_rows`	bigint	The total number of rows transferred
`total_columns`	integer	The total number of columns transferred
`transfer_time_ms`	bigint	Transfer time in milliseconds
`total_time_ms`	bigint	Total execution time in milliseconds

Debug Parameter

The debug parameter is a boolean flag that controls whether the full FastTransfer output is returned in the output column:

When debug := true, output contains the entire log from FastTransfer
When debug := false (default), output is an empty string, but error_message will still contain any error lines
